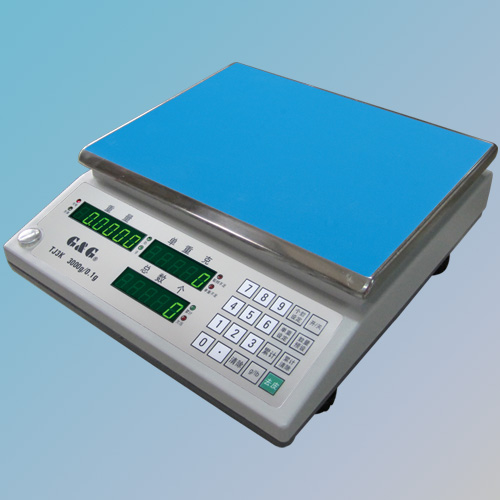

TJ series counting scale
Product features Model
·2 weighing units:g,lb ·Plastic case, internal aluminum support
·Counting function(Reference Num:1~9999) ·Strain gauge
·Full range tare ·Stainless steel and plastic weighing plate
·Auto calibration ·3*15mm green LED display
·Sum function ·20 number and function keys
·Quantity presetting
·AC or battery power supply
|
Model
|
TJ3K
|
TJ6K
|
TJ15K
|
TJ30K
|
|
Capacity
|
3kg
|
6kg
|
15kg
|
30kg
|
|
Resolution(d)
|
0.1g
|
0.2g
|
0.5g
|
1g
|
|
Calibration graduation(e)
|
10d
|
10d
|
10d
|
10d
|
|
Tare range
|
0~3kg
|
0~6kg
|
0~15kg
|
0~30kg
|
|
Calibrating weight
|
2kg
|
5kg
|
10kg
|
20kg
|
|
Min. weight
|
2g
|
4g
|
10g
|
20g
|
|
Reference weight(min.)
|
2g
|
4g
|
10g
|
20g
|
|
Pieceweight min.
|
0.05g
|
0.1g
|
0.25g
|
0.5g
|
|
Dimension of Platform
|
300×224mm
|
|
Volume
|
314(L)×298(W)×110(H)mm
|
|
Power supply
|
AC220V±10% 50Hz±1Hz
Battery : DC6V/4Ah/20HR
|
|
Operation temperature
|
0~40℃
|
|
Humidity
|
≤80%RH
|
|
Interface
|
RS232
|
|
