TC series Current Location:Home >> Products >> TC series

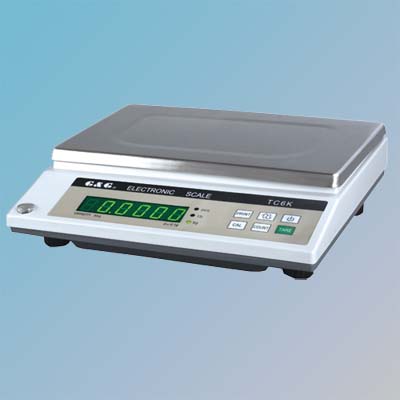

TC series electronic scale
TC series electronic scale
Product features                                                            Model
·2 weighing units:g,lb                                                  ·Magnesium alloy base
·Counting function(Reference Num:1/10/20/50/100)      ·Stainless steel weighing plate
·Auto calibration                                                          ·Strain gauge
·Full range tare                                                             ·20mm green LED display
Model
TC3K
TC6K
TC10K
TC20K
TC30K
Capacity
3kg
6kg
10kg
20kg
30kg
Resolution(d)
0.1g
0.1g
1g
1g
1g
Calibration graduation(e)
10d
10d
10d
10d
10d
Tare range
0~3kg
0~6kg
0~10kg
0~20kg
0~30kg
Calibrating weight
2kg
5kg
10kg
20kg
20kg
Dimension of platform
340×220mm

Model
TC10KB
TC20KB
TC3KA
TC6KA
TC10KA
TC20KA
TC30KA
Capacity
10kg
20kg
3kg
6kg
10kg
20kg
30kg
Resolution(d)
0.1g
0.1g
0.5g
1g
2g
5g
5g
Calibration graduation(e)
10d
10d
10d
10d
10d
10d
10d
Tare range
0~10kg
0~20kg
0~3kg
0~6kg
0~10kg
0~20kg
0~30kg
Calibrating weight
10kg
20kg
2kg
5kg
10kg
20kg
20kg
Dimension of platform
340×220mm

Volume
327(L)×350(W)×100(H)mm
Power supply
AC220V±10%    50Hz±1Hz
 Operation temperature
0~40℃
Humidity
≤80%RH
