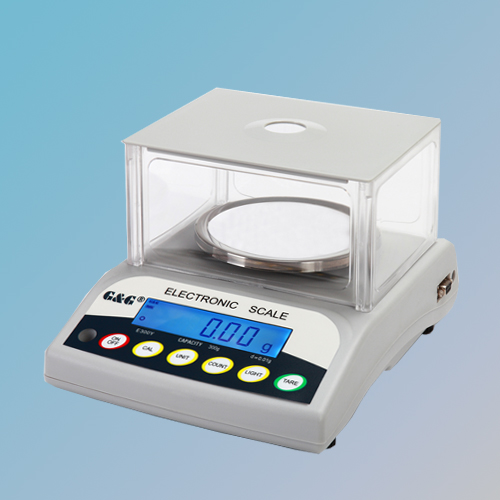

E-Y series electronic scale
Product features Model
·7 weighing units:g,ct,ozt,oz,GN,dwt,lb ·Plastic case, internal aluminum support
·Counting function(Reference Num:1/10/20/50/100) ·Strain gauge
·Full range tare ·Stainless steel and plastic weighing plate
·Automatic calibration ·Wind-proof cover
·AC or battery power supply ·LCD display with white backlight
·RS232 interface,
|
Model
|
E300Y
|
E600Y
|
E1200Y
|
E150Y
|
|
Capacity(max)
|
300g
|
600g
|
1200g
|
150g
|
|
readability（d）
|
0.01g
|
0.01g
|
0.01g
|
0.005g
|
|
Calibration value（e）
|
10d
|
10d
|
10d
|
10d
|
|
Tare range
|
0~300g
|
0~600g
|
0~1200g
|
0~150g
|
|
Calibration weight
|
200g
|
500g
|
1000g
|
100g
|
|
Weighing plate
|
Ф135mm
|
|
Dimensions
|
290（W）× 200（D）× 82（H）mm
|
|
Power supply
|
Mains power adapter Input:AC220V±10%
50Hz±1Hz
output :DC6V/300mA Or 4*1.5v AA batteries
|
|
Operation
temperature
|
0~40℃
|
|
Humidity
|
≤80%RH
|
|
Interface
|
RS232
|
|
