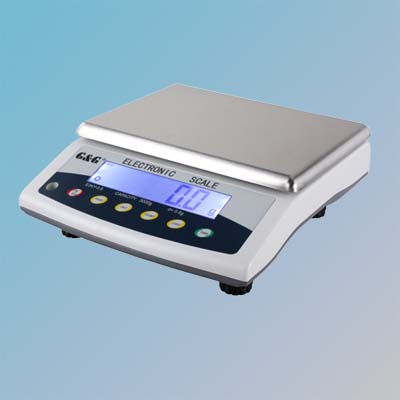

E-KY series electronic scale
Product features Model
·2 weighing units: g,lb ·Solid aluminum base
·Counting function(Reference Num: 1/10/20/50/100) ·Strain gauge
·Full range tare ·Stainless steel and plastic weighing plate
·Auto calibration ·33mm LCD display with white backlight
·With battery, AC/DC function ·Level adjustable
·RS232 interface, PRINT key
|
Model
|
E3KY-0.1
|
E6KY-0.1
|
E15KY-0.5
|
E30KY-1
|
|
Capacity
|
3kg
|
6kg
|
15kg
|
30kg
|
|
Resolution(d)
|
0.1g
|
0.1g
|
0.5g
|
1g
|
|
Calibration Graduation(e)
|
10d
|
10d
|
10d
|
10d
|
|
Tare Scope
|
0~3kg
|
0~6kg
|
0~15kg
|
0~30kg
|
|
Calibrating Weight
|
2kg
|
5kg
|
10kg
|
20kg
|
|
Model
|
E3KY-0.5
|
E6KY-1
|
E15KY-1
|
E30KY-2
|
|
Capacity
|
3kg
|
6kg
|
15kg
|
30kg
|
|
Resolution(d）
|
0.5g
|
1g
|
1g
|
2g
|
|
Calibration graduation(e）
|
10d
|
10d
|
10d
|
10d
|
|
Tare range
|
0~3kg
|
0~6kg
|
0~15kg
|
0~30kg
|
|
Calibrating weight
|
2kg
|
5kg
|
10kg
|
20kg
|
|
Dimension of platform
|
300×220mm
|
|
Volume
|
330(L)×300(W)×100(H)mm
|
|
Power supply
|
AC220V±10% 50Hz± 1Hz DC12V/600mA
battery: DC6V/4Ah/20HR
|
|
Operation temperature
|
0~40℃
|
|
Humidity
|
≤80%RH
|
|
Interface
|
RS232
|
|
